Product information:
Application scope: Arduino beginners, Arduino experimental equipment platform, Arduino interactive electronics, Arduino robot, etc.
Features: Many functions, easy to operate, a powerful driver library support and function update.
Product Description:
Arduino is a good introduction to electronic production. With the motor expansion board, Arduino can be a good platform for robot development. This paper introduces a full – function motor expansion board that can drive a variety of simple to slightly complex projects.
This is a commonly used DC motor drive module, using 293D chip small current DC motor drive chip. The pins are made Arduino-compatible, which also facilitates fast Arduino-based development by hobbyists.
2 5V servo motor (steering gear) ports connect to Arduino’s high resolution high precision timer – no jitter!
Up to 4 bidirectional DC motors and 4 PWM speed controls (approx. 0.5% resolution)
Up to 2 stepper motors for positive and negative control, single/double step control, staggered or microstep and rotation Angle control.
4-way H-bridge: The L293D chip provides.0.6A (peak 1.2A) current per bridge with thermal power off protection, 4.5V to 36V.
The pull-down resistance ensures that the motor remains in a stopped state when powered on.
Large terminal wiring terminals make wiring easier (10-22 AWg) and power.
With Arduino reset button.
2 large terminal external power terminals to ensure the separation of logic and motor drive power.
Compatible with Mega, Diecimila, & Duemilanove.
A full set of pieces are available for enthusiasts who want to do it themselves.
Download the easy to use Arduino software library for quick project development
Packing list:
1* motor drive expansion plate

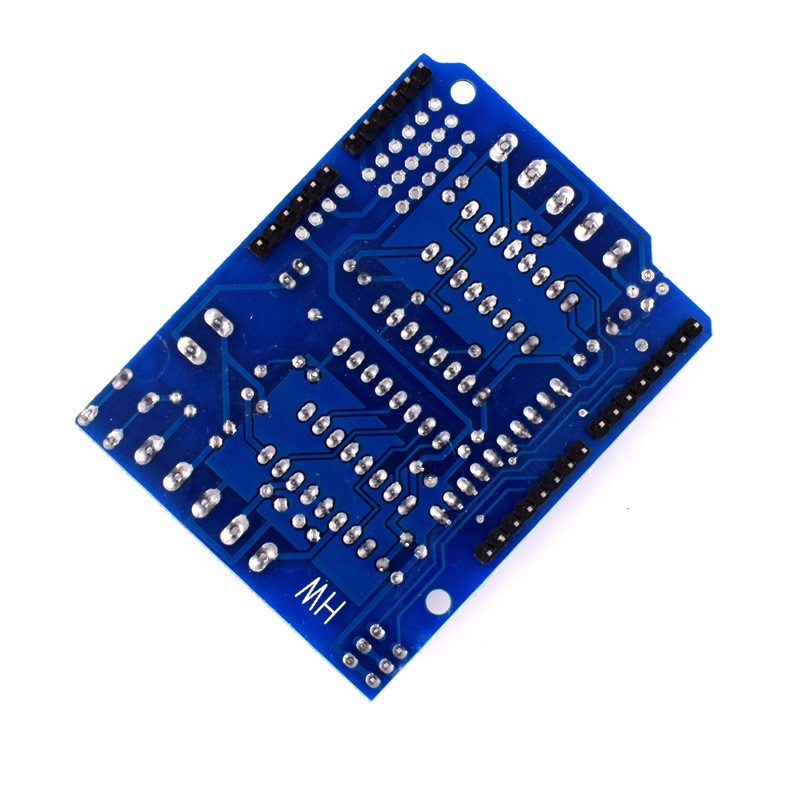

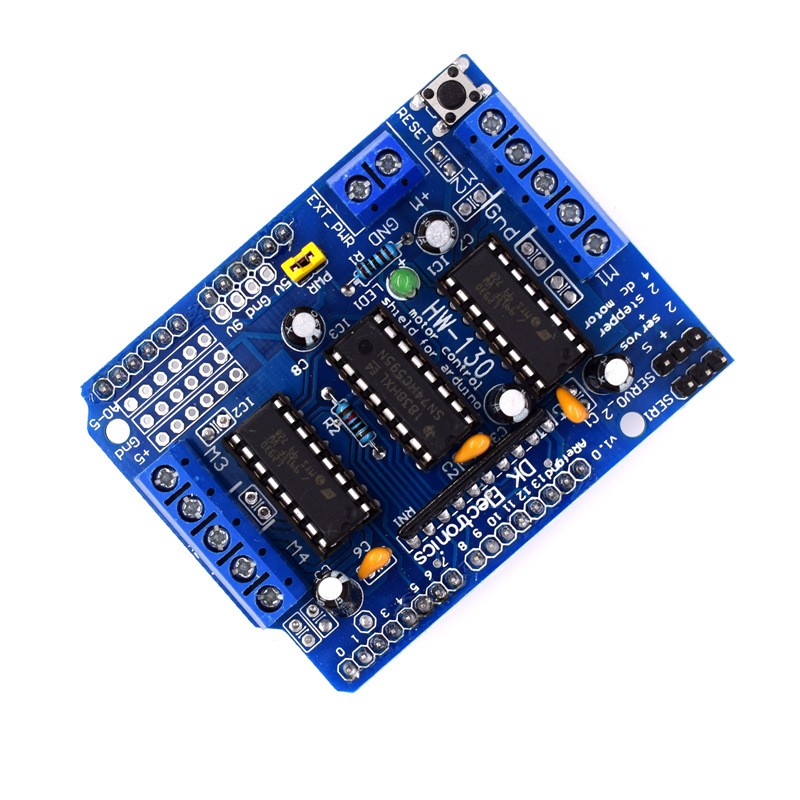

Product picture:
Specification: Motor Drive Expansion Board L293D Motor
|
||||
| Dimensions | ||||
|---|---|---|---|---|
|
||||
